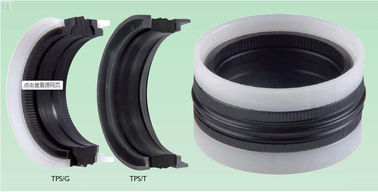

Rubber Piston Oil Seal TPS/G TPS/T Series Combined Oil Seal with High Pressure Resistance, Wear Resistance, and Easy Installation for Hydraulic Seals
| Tempat asal | Italia |
|---|---|
| Nama merek | TECNOLAN TECNOTEX Guarnitec |
| Nomor model | TPS/G TPS/T |
| Kuantitas min Order | 5 SET |
| Harga | Negotiations |
| Kemasan rincian | Kemasan asli pabrik |
| Waktu pengiriman | 1-2 hari kerja, pesanan Besar untuk 10-15 Hari Setelah Pembayaran |
| Syarat-syarat pembayaran | TT, Western Union, Uang Tunai, Bank, PayPal.HSBC, BANK KOTA. |
| Menyediakan kemampuan | 6000 buah/bulan |
Detail produk
| Nama produksi | Segel kombinasi, Segel hidrolik, Segel minyak bertekanan tinggi TECNOLAN TECNOTEX Guarnitec | Gaya | TPS/G TPS/T |
|---|---|---|---|
| Properti | Ketahanan Tekanan Tinggi, Ketahanan Aus | Ruang lingkup penerapan | Silinder piston, silinder hidrolik, segel karet hidrolik |
| Fitur Produk | Mudah dipasang, Ketahanan aus tinggi, Ketahanan kompresi tinggi, Deformasi rendah | Suhu (° C) | NBR -40℃～100℃; PTFE -200℃ ～ +260℃ |
| Model mesin | Kapal, excavator, pompa poros putar mesin hidrolik, rig pengeboran putar, pemuat hidrolik | Tekanan / kecepatan | 40(MPa) /0,5m/dtk |
| Mencicipi | Secara terbuka toko jendela, dapat memberikan sampel (dibayar) | Area Penjualan Utama | Afrika, Eropa, Amerika Selatan, Asia Tenggara, Amerika Utara, Asia Timur Laut, Timur Tengah |
Deskripsi Produk
Rubber Piston Oil Seal TPS/G TPS/T Series Combined Oil Seal Hydraulic Seals TECNOTEX
Product Overview
Rubber Piston Oil Seal TPS/G TPS/T Series Combined Oil Seal Hydraulic Seals TECNOTEX
Operating Conditions
- Pressure/Speed: 40 MPa / 0.5 m/s
- Temperature: NBR -40℃～100℃; PTFE -200℃～+260℃
- Media: Mineral oil-based hydraulic fluids, Flame retardant hydraulic fluids
- Speed: Maximum reciprocating speed
- Types: Combination seal, Rubber oil seal, Hydraulic Seal
- Main Sales Areas: Africa, South America, Southeast Asia, North America, Northeast Asia, Middle East
Product Features
- Easy to install
- High wear resistance
- High compression resistance
- Low deformation
TPS Size Series Table
| Our Ref. | Other Ref. | D | d | H | S | h | M | F |
|---|---|---|---|---|---|---|---|---|
| TPS 9501 | 098066 | 25.00 | 17.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9501/1 | 098055 | 25.00 | 14.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9502 | 118086 | 30.00 | 22.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9502/1 | 118075 | 30.00 | 19.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9503 | 125094 | 32.00 | 24.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9503/1 | 125083 | 32.00 | 21.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9504 | 137106 | 35.00 | 27.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9504/1 | 137094 | 35.00 | 24.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9505 | 157125 | 40.00 | 32.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9505/1 | 157114 | 40.00 | 29.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9506 | 177145 | 45.00 | 37.00 | 15.50 | 3.20 | 6.00 | 41.00 | 44.40 |
| TPS 9507 | 196149 | 50.00 | 38.00 | 20.50 | 4.20 | 6.00 | 46.00 | 49.40 |
| TPS 9507/1 | 216175 | 55.00 | 43.00 | 20.50 | 4.20 | 6.00 | 51.00 | 54.90 |
| TPS 9508 | 236188 | 60.00 | 48.00 | 20.50 | 4.20 | 6.00 | 56.00 | 59.40 |
| TPS 9509 | 248200 | 63.00 | 51.00 | 20.50 | 4.20 | 6.00 | 59.00 | 62.40 |
| TPS 9509/1 | 255208 | 65.00 | 53.00 | 20.50 | 4.20 | 6.00 | 61.00 | 64.40 |
| TPS 9510 | 275228 | 70.00 | 58.00 | 20.50 | 4.20 | 6.00 | 66.00 | 69.40 |
| TPS 9510/1 | 295248 | 75.00 | 63.00 | 20.50 | 4.20 | 6.00 | 71.00 | 74.40 |
| TPS 9511 | 314259 | 80.00 | 66.00 | 22.50 | 5.20 | 6.00 | 76.00 | 79.40 |
| TPS 9511/1 | 334279 | 85.00 | 71.00 | 22.50 | 5.20 | 6.00 | 81.00 | 84.40 |
| TPS 9512 | 354299 | 90.00 | 76.00 | 22.50 | 5.20 | 6.00 | 86.00 | 89.40 |
| TPS 9513 | 393338 | 100.00 | 86.00 | 22.50 | 5.20 | 6.00 | 96.00 | 99.40 |
| TPS 9514 | 433377 | 110.00 | 96.00 | 22.50 | 5.20 | 6.00 | 106.00 | 109.40 |
| TPS 9515 | 472417 | 120.00 | 106.00 | 22.50 | 5.20 | 6.00 | 116.00 | 119.40 |
| TPS 9516 | 492425 | 125.00 | 108.00 | 26.50 | 7.20 | 6.00 | 121.00 | 124.40 |
| TPS 9516/1 | 511445 | 130.00 | 113.00 | 26.50 | 7.20 | 6.00 | 126.00 | 129.40 |
| TPS 9516/2 | 531464 | 135.00 | 118.00 | 26.50 | 7.20 | 6.00 | 131.00 | 134.40 |
| TPS 9517 | 551480 | 140.00 | 123.00 | 26.50 | 7.20 | 6.00 | 136.00 | 139.40 |
| TPS 9518 | 590523 | 150.00 | 133.00 | 26.50 | 7.20 | 6.00 | 146.00 | 149.40 |
| TPS 9519 | 629562 | 160.00 | 143.00 | 26.50 | 7.20 | 6.00 | 156.00 | 159.40 |
| TPS 9520 | 708641 | 180.00 | 163.00 | 26.50 | 7.20 | 6.00 | 176.00 | 179.40 |
| TPS 9521 | 787708 | 200.00 | 180.00 | 31.50 | 9.20 | 6.00 | 196.00 | 199.40 |
| TPS 9522 | 866787 | 220.00 | 200.00 | 31.50 | 9.20 | 6.00 | 216.00 | 219.40 |
| TPS 9523 | 984905 | 250.00 | 230.00 | 31.50 | 9.20 | 6.00 | 246.00 | 249.40 |
Installation Requirements for TPS/G and TPS/T Combined Seals
Seal Structure
- TPS/T (3-piece set): 1 fabric-reinforced rubber main seal ring + 2 POM retainer/support rings (one on each side)
- TPS/G (5-piece set): 1 NBR rubber center ring + 2 thermoplastic support rings + 2 POM guide rings (on the outermost side)
Pre-installation Preparation
- Confirm Model and Direction: TPS is a piston seal (bore seal) used for double-acting hydraulic cylinder pistons and bidirectional pressure bearing. The protrusion/tip lip of the main seal ring faces the oil chamber (high-pressure side); the retainer/guide rings at both ends face outward.
- Cleaning and Inspection: The piston groove and cylinder inner wall shall be free of burrs, sharp edges, rust and iron chips; the groove entrance must have a 15°～30° chamfer/R0.5～1 fillet. Clean with lint-free cloth + special cleaning agent; cotton yarn is strictly prohibited.
- Lubrication Requirements: All seals and groove surfaces shall be lightly coated with hydraulic oil/silicone grease compatible with the medium. Prohibited: Vaseline, ordinary grease, grease containing solid particles.
- Tools and Environment: Special tools: guide sleeve/taper sleeve, pressure ring, plastic crowbar; screwdrivers, sharp-nose pliers and hammers are strictly prohibited from directly contacting the seal. Environment: clean and dust-free, temperature 15～35℃.
Installation Sequence
TPS/T (3-piece set):
- First, place one POM retainer ring flat into one side of the groove
- Install the middle fabric-reinforced main seal ring: expand evenly (expansion amount ≤5%), no sharp folding or twisting. Put into the groove, the tip lip faces the pressure chamber
- Install the other POM retainer ring, fit closely with the main seal ring without gaps or skewness
TPS/G (5-piece set):
From the inner side (oil chamber side) to the outer side of the groove, in order:
- Inner POM guide ring
- Inner thermoplastic support ring
- NBR center seal ring
- Outer thermoplastic support ring
- Outer POM guide ring
Assembly into Cylinder
- The cylinder mouth must have a sufficiently long chamfer/guide sleeve; if no chamfer, use special installation taper sleeve
- The outer circle of the seal is evenly oiled to avoid dry friction
- Push the piston horizontally, coaxially and slowly, apply force evenly
- If the piston has threads/splines, it must be wrapped with a protective sleeve before being put into the cylinder
About Our Company
Our company specializes in sale of seal repair kits for high-altitude mechanical equipment including cranes, forklifts, stackers, container cranes, quay crane equipment and other port machinery and equipment.
Original Brands: American PARKER, Germany CFW (MERKEL, SIMRIT), British HALLITE, American MPI, Italian TECNOLAN.
Seal Repair Kits Include: lift cylinder repair kit, telescopic oil cylinder repair kit, luffing oil cylinder repair kit, side shift oil cylinder repair kit, twist lock oil cylinder repair kit, etc.
Equipment Brands Supported: Kalmar (Sweden), Fantuzzi (Italy), CVS (Italy), PPM (France), Sisu (Finland), TCM, LINDE (Linde), HYSTER (Hyster), MITSUBISHI (Mitsubishi), KONECRANES (Konecranes SMV), etc.
Our Inventory Series Products
Our comprehensive inventory includes various brand oil seals and seal types:
Piston Seals
TDE TPM TPL TPS TPG PDE PDP TTU TTD TTE TRU SPGW SPGO SPG SPGA SPF NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8
Rod Seals
TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6
U-Seals
UPI UPH USH USI V99F V96H UN
Buffer Seals
HBTS HBY HBTTS D-14
Wiper Seals
DKB DKBI DKBI3 DKBZ DKI, DWI DKH DWIR DSI LBI LBH VAY DH ME-2,ME-8
Wear Rings
WR KZT RYT
Rotating Seals
ROI D-14 SPN
Spare Rings
N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O-Rings
Oring kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9 series M 2.4 series M 3.0 series M4.0
Common Pressure Oil Seals
SC, SB, TC, TB, VC, VB, DCY, TC4Y, TC4, TB4, DC, DB, VR, MG, OKC3,HSCL,HTC ,HTC9L,HTGL,KC
High Pressure Oil Seals
TCV, TCN TCZ ,TCN-6, TZ TCHD, TCHD-1 ,ISPID, 15Z, 15Z-3...
Product Images
Contact Us
Call us to discuss your questions when you have time:
Phone/WhatsApp/WeChat: 86 13924029131
We believe you will find suitable oil seals & repair kits in our product range. We are confident that our products can meet your needs in various ways.
Please let us know if you want to further solve your seal problems. We look forward to hearing from you.
Frequently Asked Questions
Q1: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we need some details about the machine.
Q2: To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so on.
Q3: How long is your delivery time?
A: Generally it takes 5-7 days if we have stock.
Q4: The pictures you saw here may not be related to the real products. Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/application and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
Q5: How to guarantee your after sales service?
- Strict inspection during production
- Recheck the products before shipment to ensure our packaging in good condition
- Track and receive feedback from our customer
Q6: Could you supply solutions to us?
A: Sure we can.
Q7: Do you have a minimum order requirement?
A: Small trial order is acceptable.
Note: If there is any need, please feel free to write to ask. We will send our picture book for you if you are interested in our catalogues. Thanks!
